LED Tube Light-General lighting Electronic CO.,LTD._

Home > Products > Lighting Fixture > Professional Lighting >LED Lamps

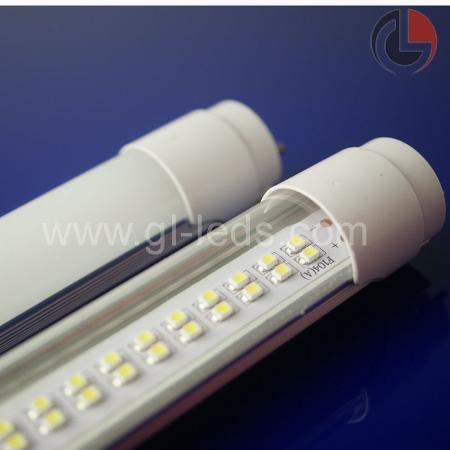

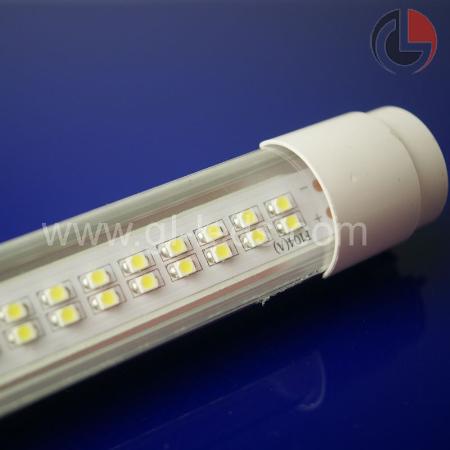

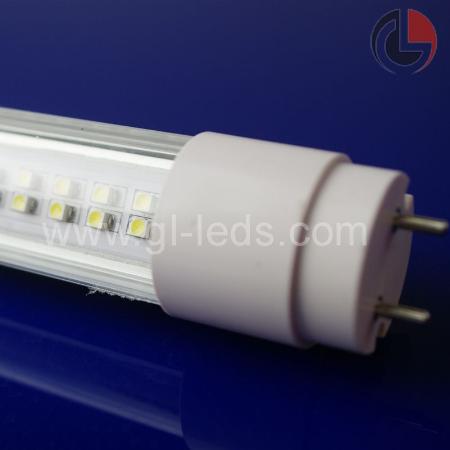

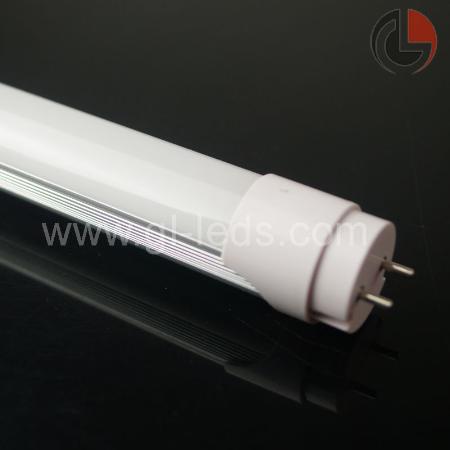

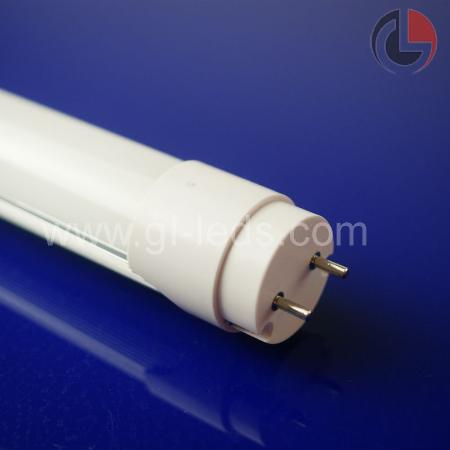

LED Tube Light

MOQ ： piece

Lead Time ： Days

Inquiry Start Order

Seller Support : Trade Authenticity Guaranteed & Accepting

Payment : L/C,T/T,Other

Departure Port : Shenzhen

Product details

Supply Ability

Supply Ability： piecesWarranty(Year)：1 Year

Packaging & Delivery

Packaging： piece

Product Specifications

Product Description

Technical Specifications:
1. LED type : 3528、3014 SMD LED
2. Wide voltage Input ：AC 90-265 V
3. Frequency : 50-60 Hz
4. PF （power factor ): 0.92-0.99
5. Power Efficiency: >87%
6. Harmonic Wave : < 20
7. CRI:80
8. Use or storage temperature: -20℃---75℃
9.Life time: 30000hrs
T8-I series has two types of shell,frosted and transparent shell.

Dimensional drawing:

External Structure:
The external structure of T8 LED tube

A. PC cover
B. FPC
C. Silicone thermal pad(ZSA)
D. D-shape aluminous slot
E. PC cover of power supply
F. Power supply

Parameter:

Part No.	Color	Length	Led Q'ty	Lumen	Weight(Max)	Power
GL-T8-I-06-T/F	PW/WW/NW	60 cm	144	750-900	325g	10W
GL-T8-I-09-T/F		90 cm	216	1150-1300	450g	12W
GL-T8-I-12-T/F		120 cm	288	1600-1800	560g	18W
GL-T8-I-15-T/F		150 cm	360	1850-2150	675g	22W
GL-T8-I-18-T/F		180 cm	432	2050-2400	810g	26W
GL-T8-I-24-T/F		240 cm	576	2300-2650	1080g	36W

Illumination

Part No.	Length	1M	2M	3M
Frosted shell	60cm	160-200lx	40-60lx	15-25lx
	90cm	260-300lx	60-80lx	25-40lx
	120cm	350-380lx	80-100lx	35-45lx
	150cm	460-500lx	110-130lx	50-60lx
	240cm	550-600lx	130-150lx	60-75lx
Transparent shell	60cm	250-300lx	60-80lx	25-35lx
	90cm	360-400lx	90-110lx	40-50lx
	120cm	550-600lx	130-150lx	60-70lx
	150cm	650-720lx	150-180lx	70-80lx
	240cm	760-870lx	170-210lx	85-95lx

Installation diagram:

1）T8 LED tube light installation for replacing traditional fluorescent lamp
2）The T8 LED tube work under the right voltage according to the specification

Application :

Widely used in supermarkets, hotels, advanced clubs, Residential lighting, underground car parks, business offices, schools, factories, lighting boxes, building decorative lighting projects and so on.

Package :

1. Adopt imported high-grade environmental friendly thick card as packaging material;
2. Professional box lined design, the T8 LED tubes are well protected in transit
3. Neutral Screen

NOTE :

1、When install LED T8 tube, try to avoid the minefields, strong magnetic field and high-pressure region.
2、Ensure a solid connection correctly in order to avoid short-circuit damage to components and trigger fires.
3、Install LED tubes in a well-ventilated place to ensure appropriate environmental temperature.
4、Using T8 led tube, please check the local voltage compliance with product requirements.
5、To prohibit the live wiring, do check and confirm wiring is correct and no short-circuit then power on.
6、In case of failures, do not maintain in private.
